Medical Multi-Parameter Patient Monitor

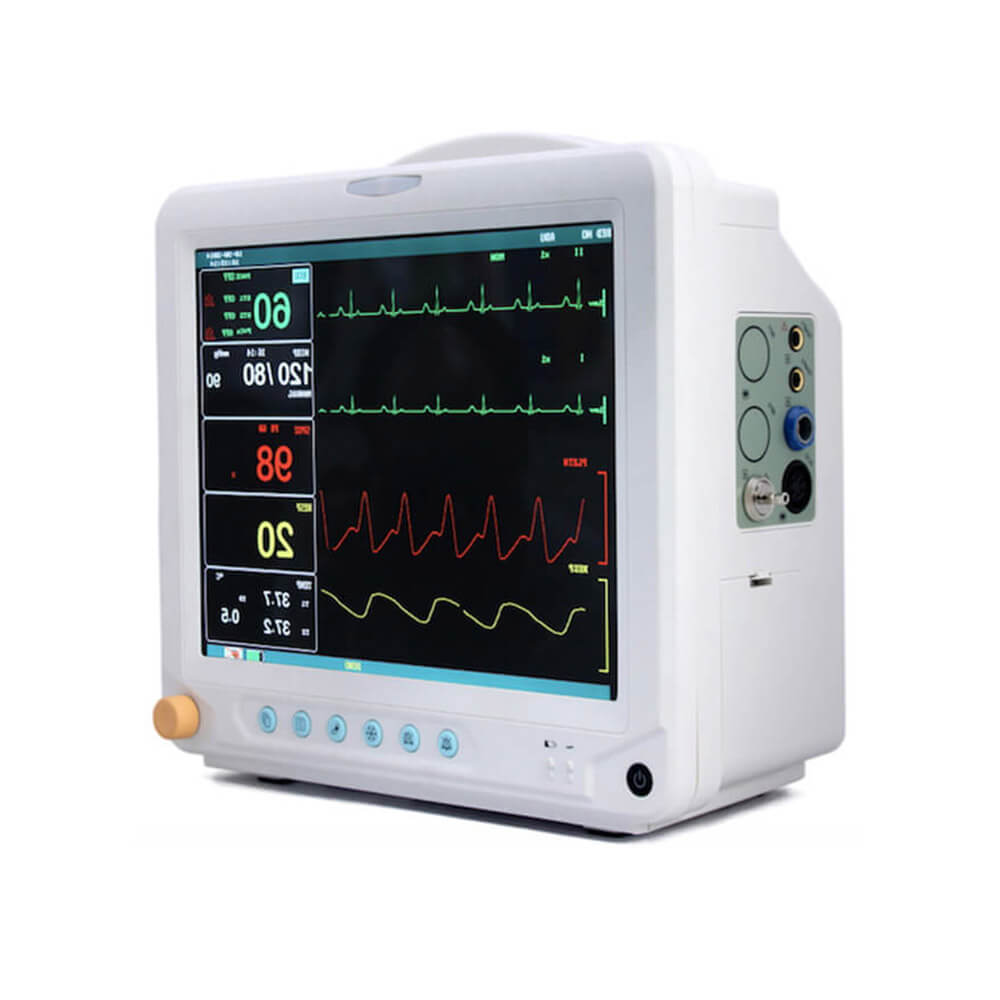

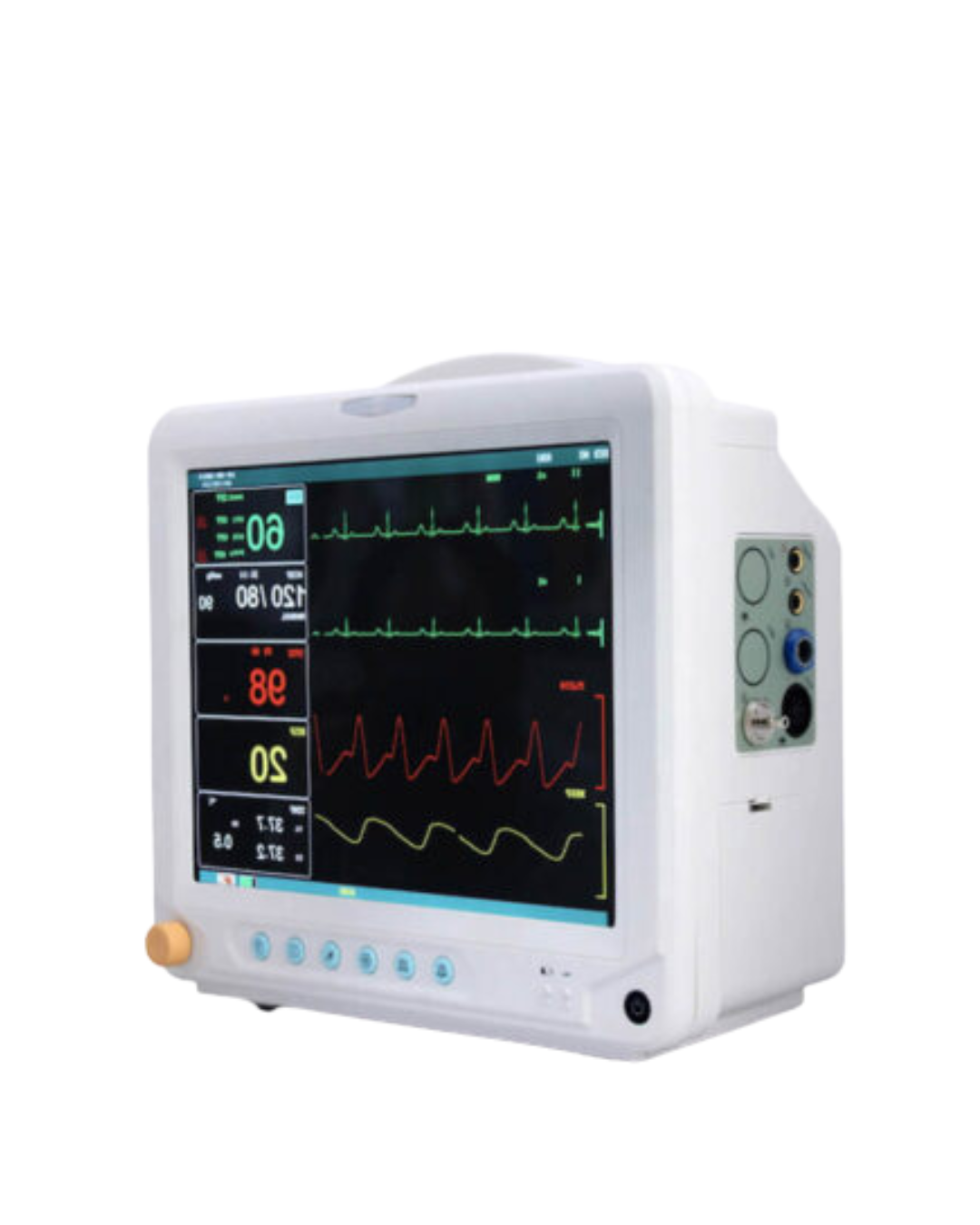

Medical Multi-Parameter Patient Monitor AG-BZ014

AG-BZ014 multi-parameter patient monitor is designed to match the pace and unique needs of adult, pediatric, and neonatal intensive care; anesthesia and peri-operative care; OR and cardiac care environments.

This patient monitor comes with a 12.1″ color TFT display that is easy to use with one level menu. It has a built-in recorder, battery, and printer that makes it suitable for adult, pediatric, and neonatal patients. Arrhythmia analysis, ST calculation, and pace analysis are some of the features that make this monitor so great.

Medwish supplies different types of patient monitors for sale at wholesale prices. You can contact Medwish online if you have no idea about patient monitor parameters and prices.

Optional
-Built-in recorder and battery and printer -Central Station Software -Switch
-An optional USB Mouse/Keyboard control eases navigation and data entry.
-An optional HDMI output eases observation from a long distance.

Features
-12.1″ color TFT display, up to 12 waveforms

-One level menu, easy to use

-Parameters including ECG/SpO2/PR/TEMP/ NIBP/HR

-Maximum 720-hour graphic and tabular trends of all parameters

-Built-in recorder and battery and printer
Suitable for adult, pediatric, and neonatal patient Arrhythmia analysis, ST calculation, Pace analysis -Anti-ESU, anti- defibrillator

-Standard network interface, can connect to Central monitor system

Core

• Newly advanced A8 mainboard with Linux OS, calculating speed is 4 times faster than traditional products
• Support storage of 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review, and 2000 alarm events review

Body

• 12.1 inches high-brightness TFT LED
• Support display 9~13 waveforms
• Support 7 channel ECG waveform display simultaneously
• Optional touch screen
• Optional HDMI output

Printer

• Built-in high-speed 50mm thermal printer
• Central System• Optional Build-in wireless network module, supporting wired or wireless connection to the central monitoring station.
• Optional Support HL7 (Health Level Seven)• Drug calculation and titration table
• Support multi-language display

Alarm

• Three-level acousto-optic alarm
• Sensor-off alarm
• Paper out alarm
• Support alarm review
• Support alarm pause

Linux OS

• Support operation with mouse and computer keyboard (option)
• Multi-display mode to meet the different clinical requirements, including standard interface, big font, OxyCRG, trend graph, NIBP review, and full leads ECG interface.
• NIBP self-test mode: including overpressure test, static pressure test, and air leakage test.
• Generate ID automatically when registering a new patient
• Support medical history search by patient ID, name, and mobile number
• 18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
• Support online software upgrading by net/USB

Model Configuration
